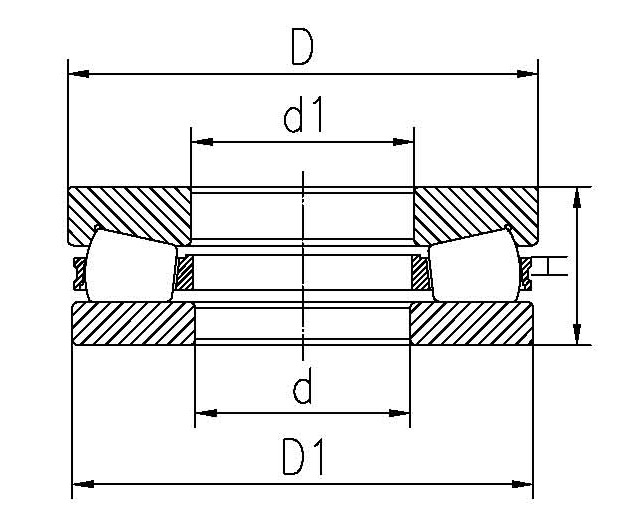

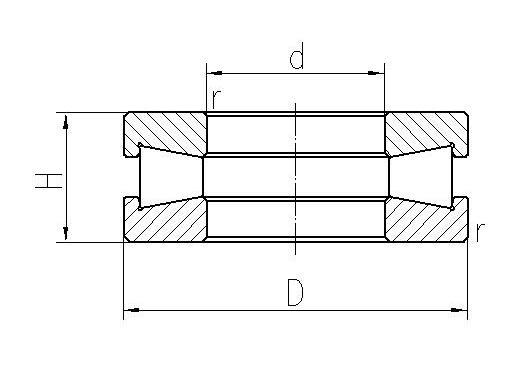

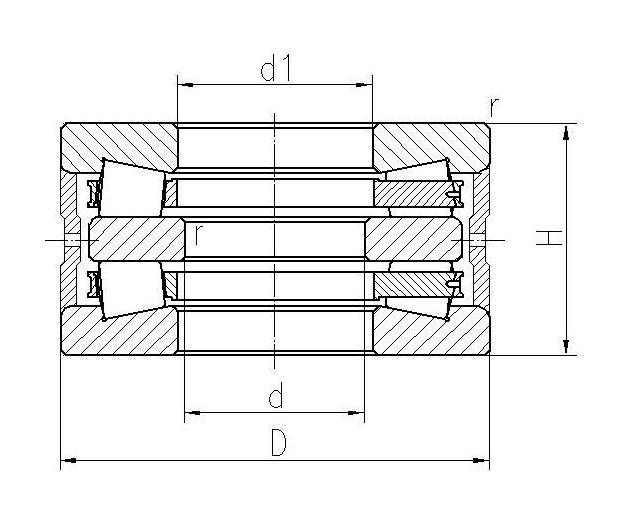

| 外形尺寸(mm) | 基本負(fù)荷(KN) | 極限轉(zhuǎn)速(r/min) | 重量(KG) | 結(jié)構(gòu) | | d | d1min | D | D1max | H | Rsmin | 動 | 靜 | Old_spec | Designations |
| 170 | - | 305 | - | 70.35 | 6 | - | - | 400 | 560 | 21.4 | 2 |
| 174.625 | - | 358.775 | - | 82.55 | 6.4 | - | - | 350 | 480 | 42.8 | 2 |
| 177.8 | - | 43.8 | - | 101.6 | 3.3 | - | - | 300 | 400 | 83.4 | 2 |
| 200 | 200.3 | 400 | - | 122 | 5 | 1720 | 7226 | 300 | 400 | 75 | 2 |
| 210 | - | 458.1 | - | 122 | 11 | - | - | 290 | 390 | 117.3 | 2 |
| | 210.3 | 460 | - | 122 | 7.5 | 2870 | 14450 | 290 | 390 | 107 | 2 |
| | 210.3 | 460 | - | 150 | 7.5 | 2870 | 14450 | 290 | 390 | 134 | 2 |
| 220 | 236 | 300 | - | 96 | 2 | 403 | 1769 | - | - | 20 | 3 |
| 250 | 275 | 380 | - | 100 | 2 | 865 | 4647 | - | - | 41.1 | 3 |
| 260 | 260.3 | 480 | - | 132 | 6 | - | - | 160 | 220 | 112.7 | 2 |
| 260 | 285 | 360 | - | 92 | 2 | 573 | 2865 | - | - | 28 | 3 |
| 270 | 270.5 | 550 | 549.5 | 130 | 8 | - | - | 140 | 190 | 159 | 2 |
| 280 | - | 520 | - | 145 | 9.5 | - | - | 140 | 190 | 157.6 | 2 |
| 320 | 320.4 | 580 | - | 155 | 7.5 | 3740 | 17537 | 110 | 160 | 185 | 2 |
| 380 | 380.4 | 670 | - | 175 | 7.5 | 4710 | 22870 | 85 | 120 | 274 | 2 |
| 380 | 460 | 680 | - | 140 | 5 | 4460 | 8230 | - | - | 217 | 3 |
| 749.3 | 749.5 | 952.5 | 954.8 | 127 | 6.4 | 5550 | 24000 | 80 | 110 | 230.4 | 1 |
| 1290 | 1291 | 1550 | - | 134 | 6 | 6970 | 55950 | 75 | 100 | 495 | 2 |
|
